Network Security

Network traffic
Network firewalls or host-based firewalls.

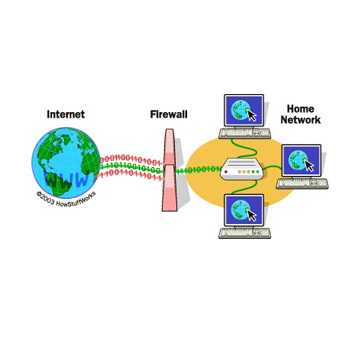

In computing, a firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. A firewall typically establishes a barrier between a trusted internal network and untrusted external network, such as the Internet.

Firewalls are often categorized as either network firewalls or host-based firewalls. Network firewalls filter traffic between two or more networks and run on network hardware. Host-based firewalls run on host computers and control network traffic in and out of those machines.

Firewall

album album album album album
Album

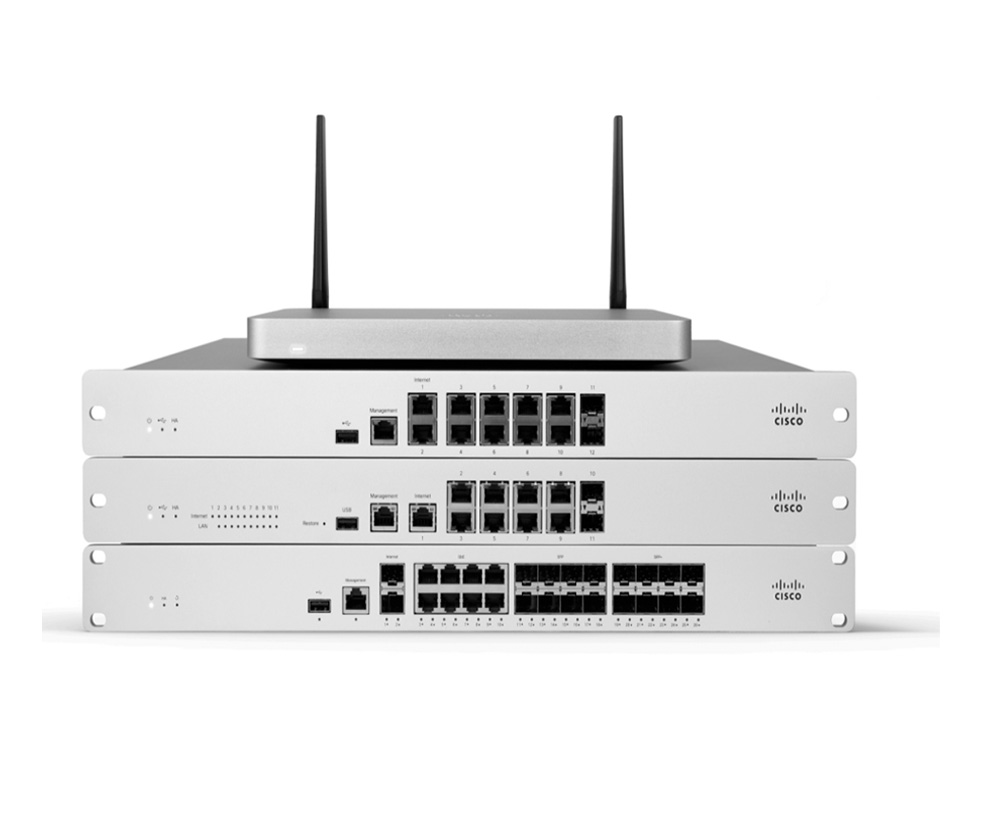

Cisco

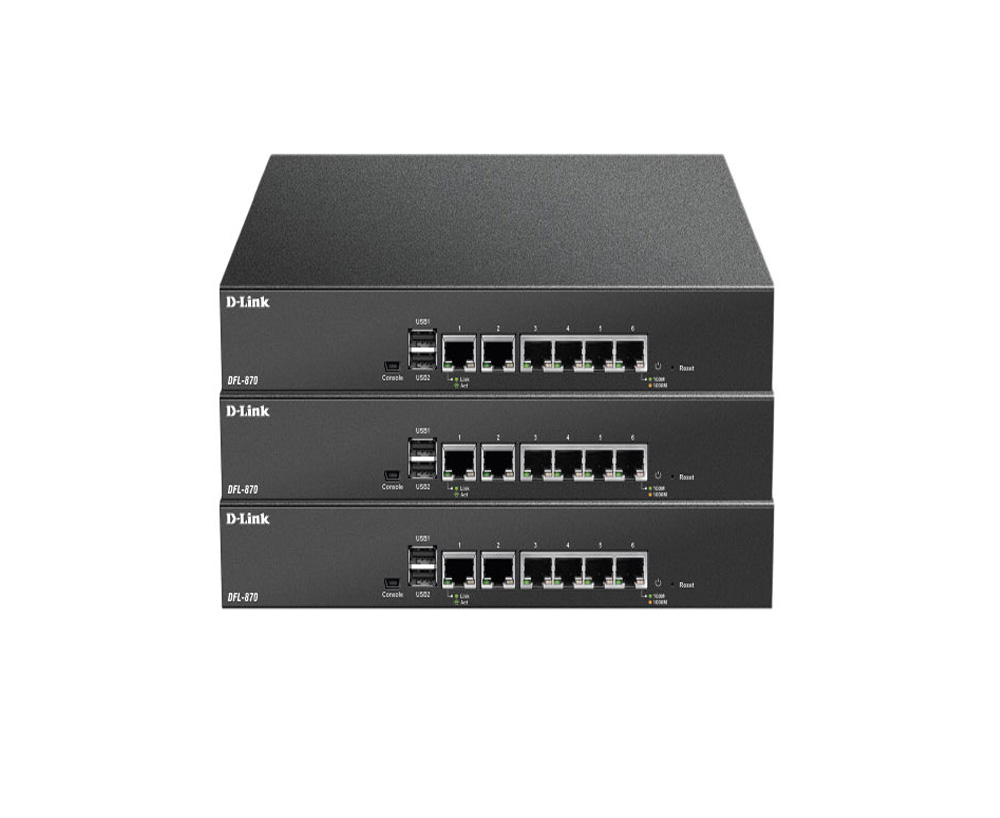

D-Link

Zyxel

Fortigate
Album

Cisco

D-Link

Zyxel

Fortigate

Internet Control Message Protocol

Network addresses
Transmission Control Protocol

The first reported type of network firewall is called a packet filter. Packet filters act by inspecting packets transferred between computers. When a packet does not match the packet filter's set of filtering rules, the packet filter either drops (silently discards) the packet, or rejects the packet (discards it and generates an Internet Control Message Protocol notification for the sender) else it is allowed to pass.Packets may be filtered by source and destination network addresses, protocol, source and destination port numbers. The bulk of Internet communication in 20th and early 21st century used either Transmission Control Protocol (TCP) or User Datagram Protocol (UDP) in conjunction with well-known ports, enabling firewalls of that era to distinguish between, and thus control, specific types of traffic (such as web browsing, remote printing, email transmission, file transfer), unless the machines on each side of the packet filter used the same non-standard ports.

Firewall

album album album album album
profile

Circuit-level gateways

Transport layer
OSI model

Second-generation firewalls perform the work of their first-generation predecessors but also maintain knowledge of specific conversations between endpoints by remembering which port number the two IP addresses are using at layer 4 (transport layer) of the OSI model for their conversation, allowing examination of the overall exchange between the nodes.

profile

Trusted Information Systems.

Denial-of-service attacks

This type of firewall is potentially vulnerable to denial-of-service attacks that bombard the firewall with fake connections in an attempt to overwhelm the firewall by filling its connection state memory.

profile

Network layer or packet filters

TCP/IP stack
OpenBSD

Network layer firewalls, also called packet filters, operate at a relatively low level of the TCP/IP stack, blocking packets unless they match the established rule set. The firewall administrator may define the rules; or default rules may apply. Network layer firewalls generally fall into two sub-categories, stateful and stateless. Commonly used packet filters on various versions of Unix are ipfirewall (FreeBSD, Mac OS X (< 10.7)), NPF (NetBSD), PF (Mac OS X (> 10.4), OpenBSD, and some other BSDs), iptables/ipchains (Linux) and IPFilter.[27] Prior to iptables, ipchains was the predominant software package for creating Linux firewalls.

Network address translation

Firewalls often have network address translation (NAT) functionality, and the hosts protected behind a firewall commonly have addresses in a "private address range", such as those defined in RFC 1918 for IPv4.
